Sonatest VEO 16:64

Pridať do obľúbených Pridať do porovnania

Sonatest VEO 16:64

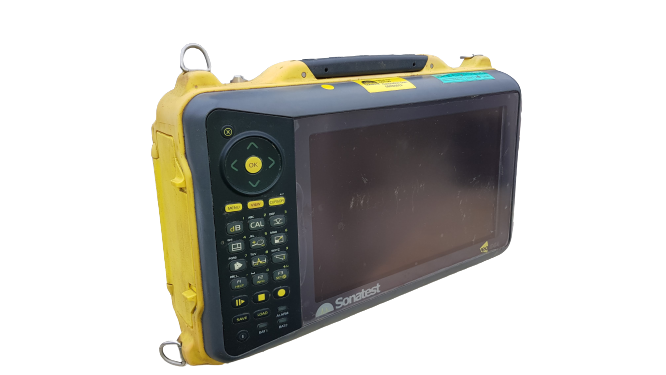

Sonatest VEO 16:64 Phased Array ultrazvukový defektoskop viac

Kód produktu: P00031 Doprava a platba

10 000 € bez DPH (12 000 € s DPH)
Na sklade
ks
(1 ks na sklade)

Sonatest VEO 16:64 Phased Array ultrazvukový defektoskop viac

Kód produktu: P00031 Doprava a platba

Sila a výkon v dokonalom balení


Rad VEO ultrazvukových defekoskopov Phased Array posilňuje reputáciu spoločnosti Sonatest ako inovatívny vývoj produktov zameraný na technikov. Jednoduché ovládanie, vynikajúci výkon, pokročilé funkcie a robustný kryt poskytujú pre každého technika jednoduchosť, schopnosť a spoľahlivosť.

Intuitívny systém menu je riadený aplikáciou a pracovným tokom, pričom nastavenie a ovládanie sa rýchlo stanú samozrejmosťou. Integrovaný pomocník a sprievodcovia prevedú používateľa nastavením skenovania, zatiaľ čo tipy na optimalizáciu zaistia, že veo bude vždy fungovať na najvyššej úrovni. Jedinečné zobrazenie 3D ScanPlan poskytuje okamžité vizuálne potvrdenie správneho nastavenia a pokrytia ultrazvukom, dokonca aj v zložitých aplikáciách s viacerými sondami.

Rýchli a efektívni sprievodcovia pre rýchlosť zvuku, klinové oneskorenie, TCG, DAC, citlivosť a kalibráciu kódovača sú dodávaní ako štandard. Jasná indikácia stavu kalibrácie je poskytovaná na obrazovke prostredníctvom jednoduchého systému semaforov, takže operátori môžu na prvý pohľad skontrolovať, či je veo kalibrované pre kontrolnú úlohu.

Navigácia v ponuke využíva technológiu rolovacieho kolieska Sonatest druhej generácie na rýchly výber parametrov, s klávesovými skratkami pre najpoužívanejšie funkcie a alfanumerické zadávanie. Známe tlačidlá Štart, Stop a Record rýchlo prepínajú medzi režimom nastavenia, snímania a nahrávania.

Špecifikácie:

PHASED ARRAY
Pulsers
Configuration 16:64 (16 pulsers/receivers; driving up to 64 elements)
Test mode Pulse-Echo and Transmit/Receive
Transducer Socket I-PEX
Pulse Voltage -50 V to -100 V (in steps of 10 V)
Pulse Shape Negative square wave (with ActiveEdge)
Pulse Width adjustable 25ns to 1000ns (2.5ns resolution)
Edge Time <10 ns in 50 ohms load @100V
Output Impedance Tx/Rx Focus <16 ohms
Delay Range 0 to 10 µs (2.5 ns resolution)
Receivers
Gain Range 0-84 dB, in steps of 0.1dB
Input Impedance 50 ohms
Bandwidth 200kHz - 27MHz (-3 dB)
Data Acquisition
Architecture Full digital delay and sum architecture
Digitizing Frequency 50/100 MHz
Digitizer Resolution 12 bits
Data Processing 16 bits/sample
Data Recording Full raw data recorded
Max A-Scan Length 8192 samples (32 metres in steel LW, 50MHz, 1:128)
Maximum PRF 20 kHz
Focal Law Qty Up to 1024
Focusing Type Constant Depth, Constant Sound Path, Constant Offset
Processing Digital filters, Smoothing, Contouring, Rejection
Filters 7 narrow bands and 3 broadbands, automatic
Sub-sampling 1:1 to 1:128
Rectifier RF, Full, Positive, Negative
Trigger Synchronisation Reference On encoder resolution or internal PRF (not encoded) Initial pulse or gate, IFT supported
Scan & Views
Supported Scans S-Scan & L-Scan
Real Time Views S, L, B, C-Scan, Merged Top and End view.
Colour Maps 10 Standard & User customisable pallete
Multi-Group 4 scans and 1 TOFD Scan
Cursors
Types Cartesian, Extraction Box, Angular
Measurements Path Length, Depth, Surface Distance, DAC, AWS
Conventional UT/TOFD (Mono Element Channels)
Pulsers
No. of Channels 2 TX/RX (2 multiplexed channels) 2 RX
Test Mode Pulse-Echo, transmit/receive, TOFD
Transducer Socket BNC or LEMO 1 (factory option)
Pulse Voltage -400 V (adjustable from -100 to -400 V in steps of 10 V)
Pulse Shape Negative Square Pulse (with ActiveEdge)
Pulse Width Adjustable from 25 ns to 2000 ns, resolution 2.5 ns
Edge Time <20 ns in 50 ohms load @400V
<10 ns in 50 ohms load @150V
Output Impedance <10 ohms
Receivers
Gain Range 102 dB (-30 dB to 72 dB)
Input Impedance 400 ohms
Filter Bands Narrow bands centred at 0.5 MHz, 1 MHz, 2.25 MHz 5 MHz, 7.5 MHz, 10 MHz and 15 MHz
Broadband at 1 MHz to 18 MHz (-6dB)
Data Acquisition
Digitizing Frequency 50/100/200 MHz
Digitizer Resolution 10 bits/sample
Data Processing 16 bits
Data Recording Full raw data recorded
Max. A-Scan Length 8192 samples (32 metres in steel LW, 50 MHz, 1:128)
Maximum PRF 20 kHz
Processing Digital Filters, Smoothing, Contouring, Rejection, Averaging
Sub-sampling 1:1 to 1:128
Rectifier RF, Full, Positive, Negative
Trigger Synchronisation On encoder resolution or internal PRF (both encoded or not)
Scans & Views
Supported Scans A-Scans & TOFD
Views A, B, C-Scan, Merged & TOFD
Cursors
Type Cartesian, Hyperbolic
Measurements Path Length, Depth, Surface Distance, DAC, AWS, DGS
Conventional And Phased Array
DAC
Number of points 16
DAC Quantity 1 with 3 sub-DAC (per focal law in PA)
Time Corrected Gain (TCG)
Number of points 16
Gain Range 0 to 60 dB
Max Gain Slope >50 dB/µs
Gates
A-Scan Gates 4 gates per A-scan (3 extracted A-scans per S/L-scan)
Gate Trigger Flank/Peak
S/L-Scan 2 Extraction Boxes per S/L-scan
Alarm LED 1 (sync on all gates & DACs)
Measurements Available in A-Scan view Peak & Flank (FSH, dB, Depth, Beam Path Length, Surface Distance), Echo-to-Echo, Floating Gates (reference from IFT)
General
Data storage
Internal 6 GB (standard)
External Hot removable “User” USB8 GB (standard) Only limited by USB key capacity
Transfer Rate To User Key - Up to 23 MB/s Write mode Up to 27 MB/s Read mode
Data File Size 3GB (FAT32 file system)
Typical Scanning Speed 10 to 15 cm/s (3.9 to 5.9 in/s)
Typical Scan Length >10 m (32.8ft)
Display
Size 25.9 cm (10.2 in) Wide aspect ratio
Resolution 1024 x 600 pixels
Colour 260k (65535 colours for scan palettes)
Type TFT LCD
I/O Ports
USB Ports 3 x USB certified ports (480 Mbps)
Ethernet Gbit Ethernet (1000 Mbps)
Video Output VGA Analog (1024 x 600)
I/O
Encoder 1 or 2 axis quadrature encoder (LEMO connectors) Single ended and differential input
Digital Inputs 2 input lines (5V TTL)
Digital Outputs 4 Output lines (5V TTL, 20 mA) for alarm or other external control
Power Output 5 V, 500 mA, current limited
Interface and Reporting
Integrated Help Active help & parameter description / Optimization
Language (Dynamic) Selectable: English, German, French, Spanish, Russian, Chinese, Hungarian, Italian, Portuguese
Remote Connection Onboard VNC Server and FTP Server (connection through Ethernet protocol)
PDF Reader Allows viewing any uploaded PDF file, scan plan, procedures, old reports etc.
Batteries & Power Supply
Battery Type Intelligent Li-ion batteries
Number of Batteries 2
Operation 1 battery or 2 batteries, DC Power pack
Battery Replacement Hot swappable - no tools required
Battery Recharge Batteries recharge in unit, operating or not
Battery Life 6+ hours (typical operation).
Enclosure
Size H220 mm x W335 mm x D115 mm (8.66 in x 13.19 in x 4.52 in)
Weight 5.28 kg(11.6 lb) 1 battery/ 5.75 kg (12.6 lb) 2 batteries
Environmental
Temperature Operating -10 o C to 40 o C (14 o F -104 o F).
Storage -25 o C to 70 o C (-13 o F -158 o F)
Relative Humidity 5 to 95% non-condensing
Environmental Designed to meet IP66
Vibration EN60068-2-6 Sinusoidal vibration, 50hz to 500Hz, 0.5mm, 18g, 5 sweep cycles
Shock According to MIL-STD-810F, Method 516.5, Procedure IV; 26 “1-meter drops” (each face, edge, corner), while operating, to 2 inch plywood over concrete.
